SUNSHINE C3 Mix Ultra Intelligent Cutting and Laminating Machine

SUNSHINE C3 Mix Ultra Intelligent Cutting and Laminating 2-in-1 Machine combines precise screen protector cutting and vacuum laminating. Its intelligent and efficient operation, combined with a comprehensive selection of film materials and a powerful cloud-based database, covers all major device models on the market. It's suitable for personalized, precise film application across a wide range of device models and materials.

Features
1. One-Touch Intelligent Operation: Integrates the cutting and laminating processes, enabling fully automated, one-touch operation.
2. Intelligent Vacuum UV Curing: Utilizes vacuum adsorption technology to ensure a smooth, even fit to curved surfaces. Optional UV curing ensures a tight, wrinkle-free film finish, eliminating bubbles and bubbling.

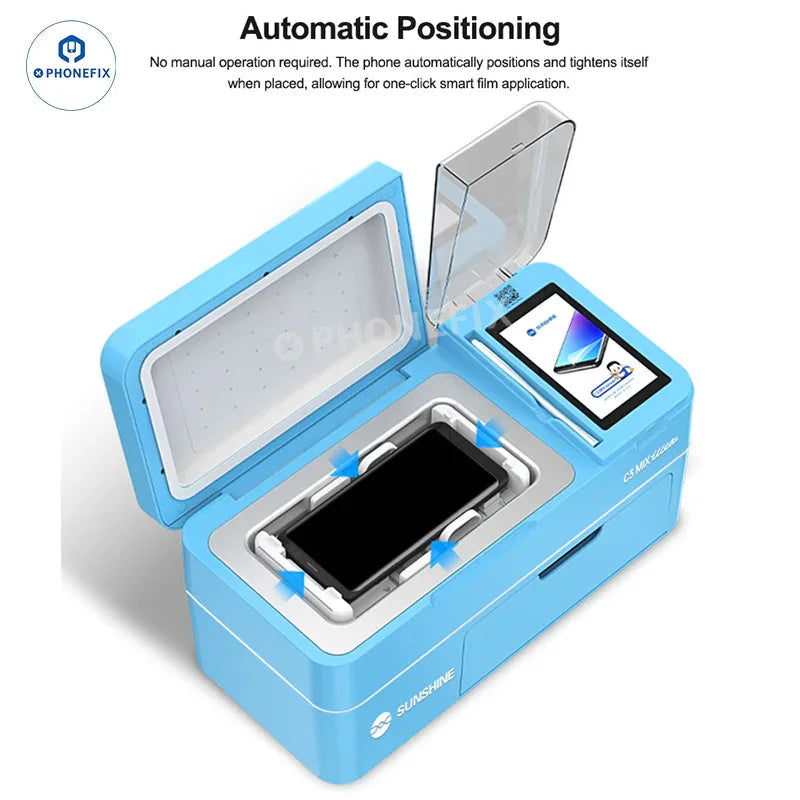

3. Automatic Positioning and Film Feeding: Simply place your phone down for automatic positioning and fixturing. Infrared sensing automatically transfers the film to the designated location, eliminating the need for manual operation or specialized jigs.
4. Cloud Data System: A built-in, real-time cloud database covers all major brands and models, and the 5.5-inch touchscreen supports multi-language switching.
5. High-Precision Cutting: Cutting accuracy reaches 0.1mm, supporting film sheets up to 12.9 inches in size, and adapting to various protective film materials.
6. Professional Accessories: Equipped with a multi-functional dual-use smart stylus for precise and smooth operation; a built-in camera guard and silicone protective cover fully protect your phone.
7. Lightweight and Integrated Design: Combining multiple functions in a compact design for easy portability and storage.

Product Specifications
Brand: SUNSHINE
Product Name: Intelligent Cutting & Laminating 2-in-1 Machine
Model: C3 Mix Ultra
Maximum Film Feed Width: 235mm
Maximum Cutting Width: 217mm (Compatible with 12.9-inch tablets)
Maximum Cutting Pressure: 1000g
Maximum Cutting Speed: 500mm/s
Compatible Film Sizes: Max: 188x88mm
Min: 129x61mm (Except for triple-proof and foldable phones)
Cutting Accuracy: 0.1mm
Air Pump Pressure: ≈100kPa
Drive: Stepper Motor
Control Panel: 5.5-inch Touchscreen
Connectivity: Wi-Fi
Input: 24VDC 2.75A
Maximum power: 66W
Rated power: 48W
Operating temperature: 5°C-35°C
Dimensions: 430x200x237.5mm
Packaging dimensions: 500x270x360mm
Net weight: ≈9.3kg
Gross weight: ≈11kg
