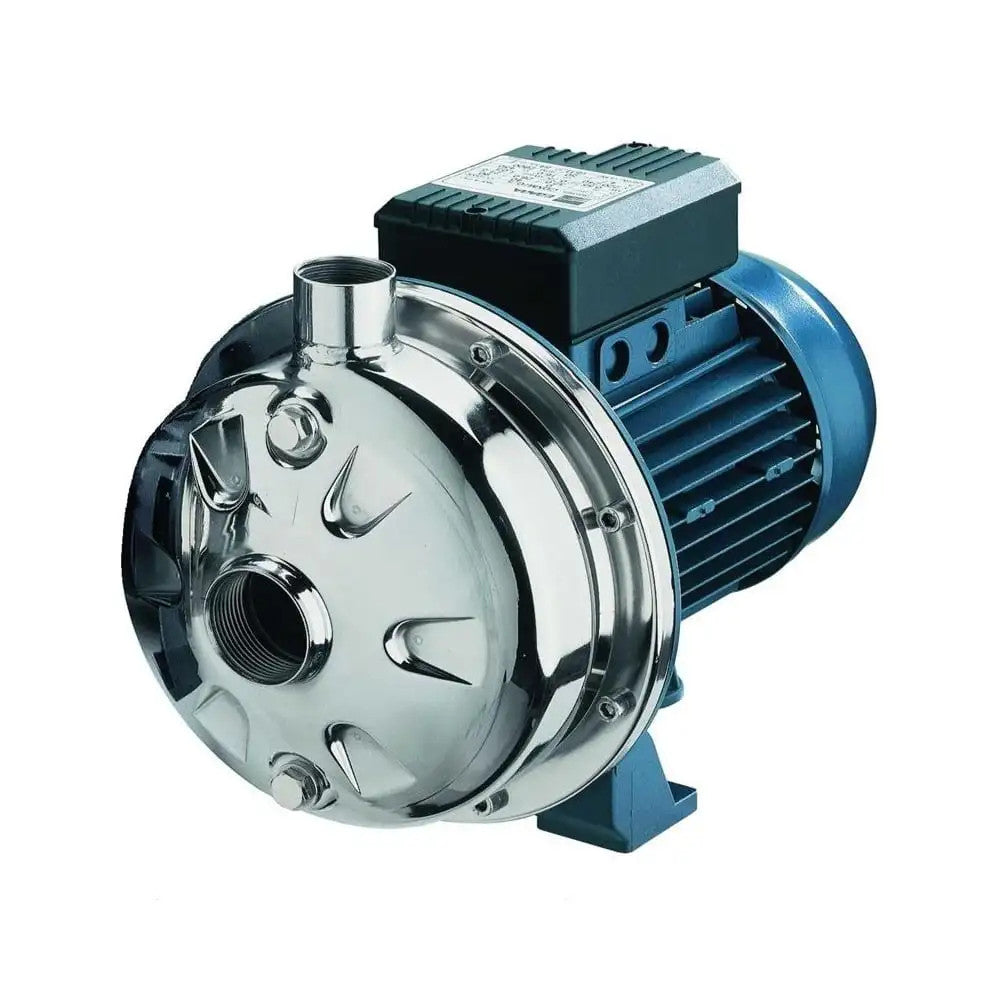

Ebara CDX70/156T2, 1-1/2 HP, 3 PH. TEFC Single Stage Pump, 230/460V

Ebara Pumps CDX Single Stage Centrifugal Pump, 1-1/2 HP

Model CDX70/156T2

Single impeller centrifugal pump with hydraulics in 304 and 316 stainless steel, with radial impeller, with hydraulics entirely in pressed 304 SS, with hydroformed components, which ensure sturdiness, hydraulic efficiency and reliability.

These features ensure high corrosion resistance, high efficiency with performance above 80% and low losses.
The small size of CDX electric pumps makes them suitable for narrow or difficult to reach spaces.
The versatility of these electric pumps is due to the different types of mechanical seals that can be applied.

CDX Instructions and Operations
CDX Datasheet

Specifications:

• Type: End Suction
• Solids: None
• Connection: NPT
• Controls: None
• HP: 1-1/2
• Motor Enclosure: TEFC
• Voltage/Phase: 230/60V/ 3 Phase
• Elec. Connection: Hard Wired
