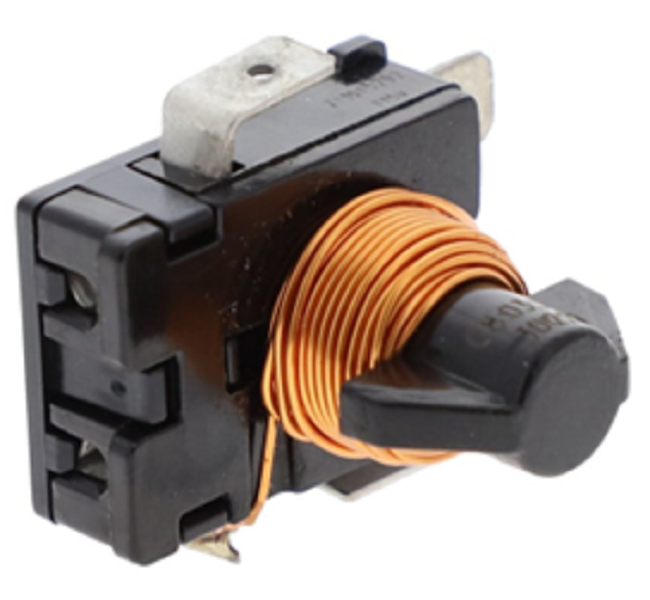

Nidec-Embraco 513515292-ESP Relay

The Nidec-Embraco 513515292-ESP Relay is an essential electronic starting device designed specifically for 115V hermetic compressors. Engineered for high-reliability HVACR refrigeration cycles, this solid-state compressor relay (often referred to as a PTC starter or TSD relay) ensures the precise timing of the start capacitor circuit to initiate compressor torque under varying load conditions. For technicians servicing commercial or residential units, this genuine Embraco replacement part is critical for maintaining LRA (Locked Rotor Amps) specifications and protecting the compressor motor windings from premature failure. The 513515292-ESP model is recognized for its thermal stability and low power consumption, making it a standard OEM component in modern cooling systems. When addressing compressor won't start issues, replacing the old overload protector and relay assembly with this calibrated component ensures the refrigeration system operates at peak efficiency while preventing excessive heat buildup during the start-up phase.

Key Benefits:

• Ensures consistent compressor motor starting torque in 115V cooling systems.
• Reduces electrical stress on hermetic compressor windings during the initial power-up phase.
• Standard spade terminal configuration for straightforward field installation and compatibility.
• Robust solid-state design eliminates the mechanical failure points common in older electromagnetic relays.
• Designed for high-duty cycles common in commercial refrigeration applications.

Common Questions:

How do I confirm compatibility with my existing Embraco compressor?
Verify the part number on your current relay matches 513515292-ESP or check your compressor's technical data sheet for the specific starting device requirements to ensure correct resistance and voltage ratings.

What are the symptoms of a failing compressor relay?
Common signs include the compressor "clicking" but failing to turn on, the overload protector tripping frequently, or the compressor motor humming without initiating the cooling cycle.

Can I use this relay on refrigeration units using 230V?
No, the 513515292-ESP is strictly rated for 115V AC applications. Installing this on a higher voltage system will result in immediate component failure and potential damage to the compressor.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
