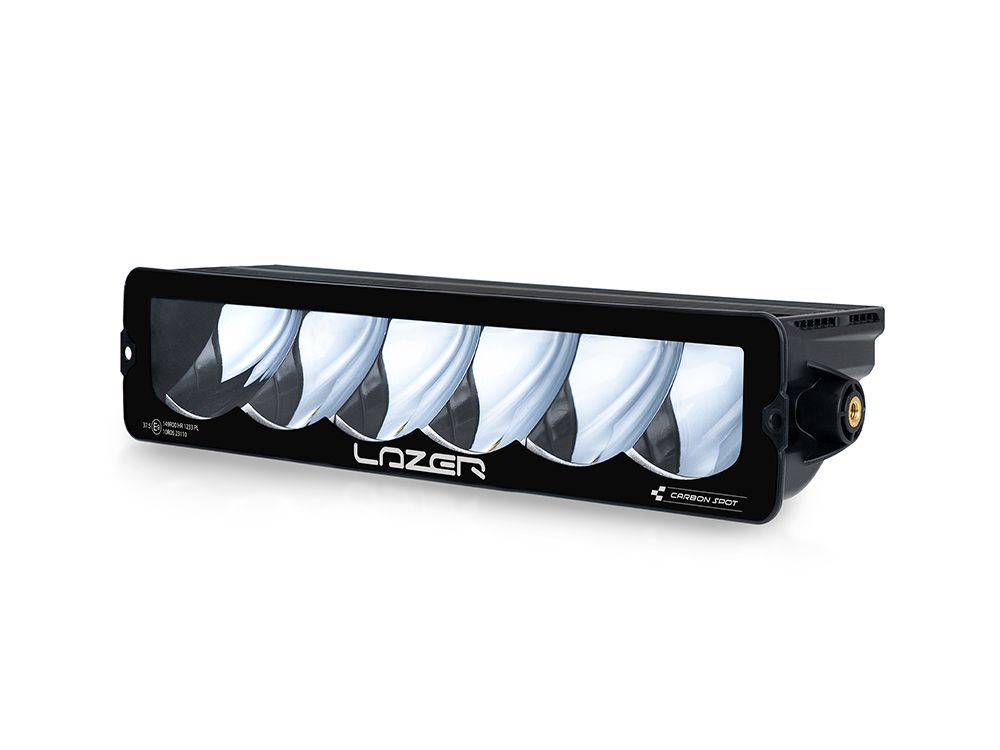

LAZER LAMPS Carbon-6 SPOT (Gen3)

The 3rd generation of Carbon-6 LED driving lights represent years of continued development and testing at the very highest levels of professional rally and track motorsport. The re-design and re-engineering of the products delivers more light, less weight, and greater functionality, compared to previous iterations. Available as ‘SPOT’ or ‘DRIVE’ beam pattern, each light can operate in four modes: HIGH BEAM - BOOST MODE (100% output) DIP/LOW BEAM (100% output) HIGH BEAM - REDUCED OUTPUT (25% output) DIP/LOW BEAM - REDUCDED OUTPUT (25% output)

• Ultra-lightweight, PC-ABS material housing
• Combination of high intensity ‘matrix’ LEDs
• Available with Spot or Drive optics
• Full-beam mode can be limited to operate with UNECE E-mark regulation limits
• Secondary ‘dip/low’ beam mode
• Additional lighting modes possible with variable PWM input signals
• Active Power Management regulates current draw (max 7.3A) at low voltages
• Carefully selected 5000K colour temperature maximises sharpness and definition
• Included quick fit and release lens covers – Amber and Black
• CAE-optimised heatsink requires minimal airflow to maintain 100% light output
• Dynamic drive modulation preserves electronic components in adverse conditions
• Low profile, edge-to-edge design for improved aerodynamic performance
• Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)
• Vehicle side connector, plus 300mm cable length supplied with each lamp.
• Compatible 2-lamp and 4-lamp wiring looms available
• Rally mounting solutions available including carbon-fibre rally pods
• Fine tune adjustment mechanism on each light for accurate aiming (when used with compatible rally pods)
• ‘Unbreakable’ polycarbonate lens
• IP68 watertight
• 5-year warranty
• Designed & manufactured in Britain
