Description
xSmartScope is a compact 2-channel USB oscilloscope with a bandwidth of 30 MHz and a sampling rate of 2x 100 MSa/s. It is compatible with all major platforms, including Windows, macOS, Linux, and Android. The operation and display of measurement signals are done via smartphone, tablet, or PC. Additionally, a logic analyzer and a signal generator are integrated.
Even more, you can get mobile with it: take the SmartScope on the road, thanks to the single-cable connectivity. Everything is going to be intuitive: pointing, pinching and swiping finally replaces the clunky interfaces of old scopes.
With the SmartScope you develop your digital interfaces using the 100 MS/s logic analyzer. With this tool you can design any signal you want using Excel, then upload it to the built-in Arbitrary Waveform Generator (AWG). At the end capture the voltage at any point of your design at 100 million times each second.
The Software for the support of Windows / macOS / Linux / Android and Export formats (Excel .csv / Matlab .mat) are given.
Features
- Channel sampled at 100 MHz/s each
- AC/DC coupling on analog inputs
- 100% silent
- 64 Mbit RAM: x10000 zoom
- Arbitrary Waveform Generator
- 8 digital inputs at 100 MS/s each
- 4 digital outputs at 100 MS/s each
- Externally power your scope in case your mobile can't supply the juice.
Specifications
| Oscilloscope | |
|---|---|
| Bandwidth | 30 MHz (-3 dB point) |
| Sample rate | 2x 100 MS/s |
| Channels | 2 |
| Max pre-trigger position | 16x full scale |
| Max post-trigger position | Full scale |
| Max full voltage scale | 10 V/div (±35 V input range) |
| Min full voltage scale | 20 mV/div |
| Analog input range | -35 V, +35 V |
| Max input peak-to-peak | 40 V |
| Signal coupling | AC / DC |
| Precision | 8 bit |
| Input impedance | 1 MΩ // 10 pF |
| Waverforms | 200 waveforms/s |
| Data delay to host | < 10 ms |
| Sample depth | Up to 4 million samples per channel |
| External trigger | Yes |
| Logic Analyzer | |
| Input channels | 8 |
| Input impedance | 100 kOhm // 2 pF to GND |
| Sample rate | 100 MS/s |
| Logic level | 1.8 V to 5.0 V |
| Diode protection | Bidirectional |
| Input data buffer | 4 million samples |
| Waverforms | 200 waveforms/s |
| Data delay to host | < 10 ms |
| Protocol decoders | I²C, SPI, UART, I²S integrated User extensible |
| Wave Generator (Analog Output) | |
| Output channels | 1 |
| Data rate | Up to 50 MS/s |
| Output level | 0-3.3 V (Opamp driven) |
| Output buffer | Up to 2048 samples |
| Max slew rate | 30 ns/V |
| Step | 13 mV |
| Wave Generator (Digital Output) | |
| Channels | 4 |
| Data rate | Up to 100 MS/s |
| Output level | 3.3 V or 5 V (selectable) |
| Output buffer | Up to 2048 samples |
| Diode protected | Yes |
| Programmable Logic | |
| USB controller | MicroChip PIC18F14K50 |
| USB interface | PicKit3 or USB flashable |
| FPGA | Xilinx Spartan 6 |
| FPGA interface | JTAG and USB flashable |
| Size & Weight | |
| Dimensions (L x W x D) | 110 x 64 x 24.2 mm (4.33 x 2.52 x 0.95") |
| Weight | 158 g |
| Case | Aluminium |
| Connectivity | |
| Device/Host | mini USB included |
| Record waveforms | Store Matlab (.mat) or Excel (.csv) files through Dropbox |
| Analog | BNC 2 probes included |
| Digital | 8x 0.1" pitch, probes (included) |
| Sync | USB micro B-B |
| Power | USB micro B (optional) |

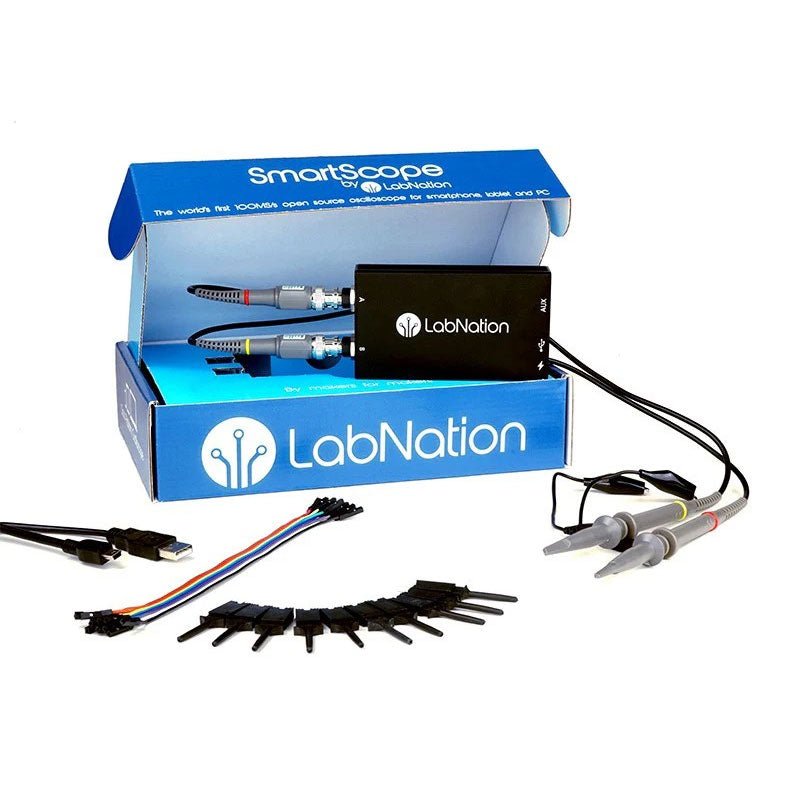

Included
- 1x SmartScope USB Oscilloscope
- 2x Analog probes
- 1x Digital probe cable
- 1x USB cable
