Johnson Controls VG7000-1009 Spring Kit

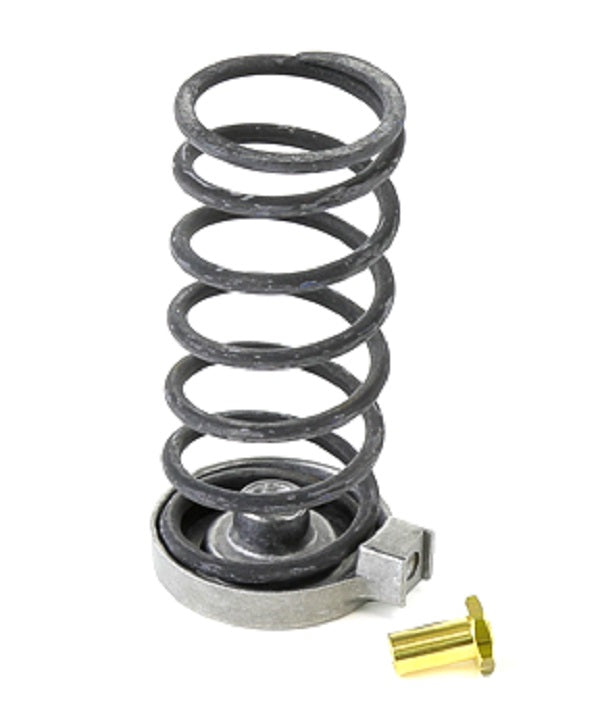

The Johnson Controls VG7000-1009 Spring Kit is a specialized field-mounting solution designed for V-3000 Series Pneumatic Valve Actuators. This kit is specifically engineered for 1-1/2 inch and 2 inch valve bodies featuring a 3/4 inch stroke, providing the calibrated force necessary for accurate fluid regulation in commercial HVACR systems. With a 9-13 PSI spring range, this mounting kit is typically utilized in normally closed (PDTO) or three-way mixing valve configurations where a high-tension return or specific sequencing is required.

For technicians performing a VG7000 valve repair or an in-situ actuator upgrade, the VG7000-1009 includes all essential components for a complete linkage installation: the 9-13 lb spring, stem extension, stem lock screw, and upper spring seat. This Johnson Controls replacement part ensures the pneumatic actuator maintains its rated close-off pressure against steam or water flow, preventing leakage and ensuring the HVAC control valve responds precisely to controller signals. Designed for use with standard threaded stem designs, it allows for a reliable field mounting process without the need for specialized factory equipment.

• Optimized Performance: Specifically calibrated for 1-1/2" and 2" VG7000 series valves to ensure consistent 3/4" stroke travel.
• Versatile Application: Ideal for normally closed (NC) configurations requiring a 9-13 PSI operating range for stable modulation.
• Complete Linkage Kit: Reduces downtime by providing all hardware including the V-30008 linkage components in a single package.
• Rugged Reliability: Built to withstand high-demand HVAC environments, maintaining spring tension over long-term cycling.

What valves are compatible with the VG7000-1009?
This kit is designed for Johnson Controls VG7000 Series bronze valves, specifically the larger DN40 (1-1/2") and DN50 (2") sizes with a standard threaded stem.

Can this kit be used with V-3801 actuators?
No, this specific kit is optimized for V-3000 Series pneumatic actuators. For V-3801 or MP8000 series, different mounting hardware is required to match the stem stroke and force requirements.

Is this suitable for a 4-8 PSI sequencing setup?
No, this kit contains a 9-13 PSI spring. If your application requires a lower pressure range for sequencing, you should use the VG7000-1008 or appropriate lower-tension kit.
