Description

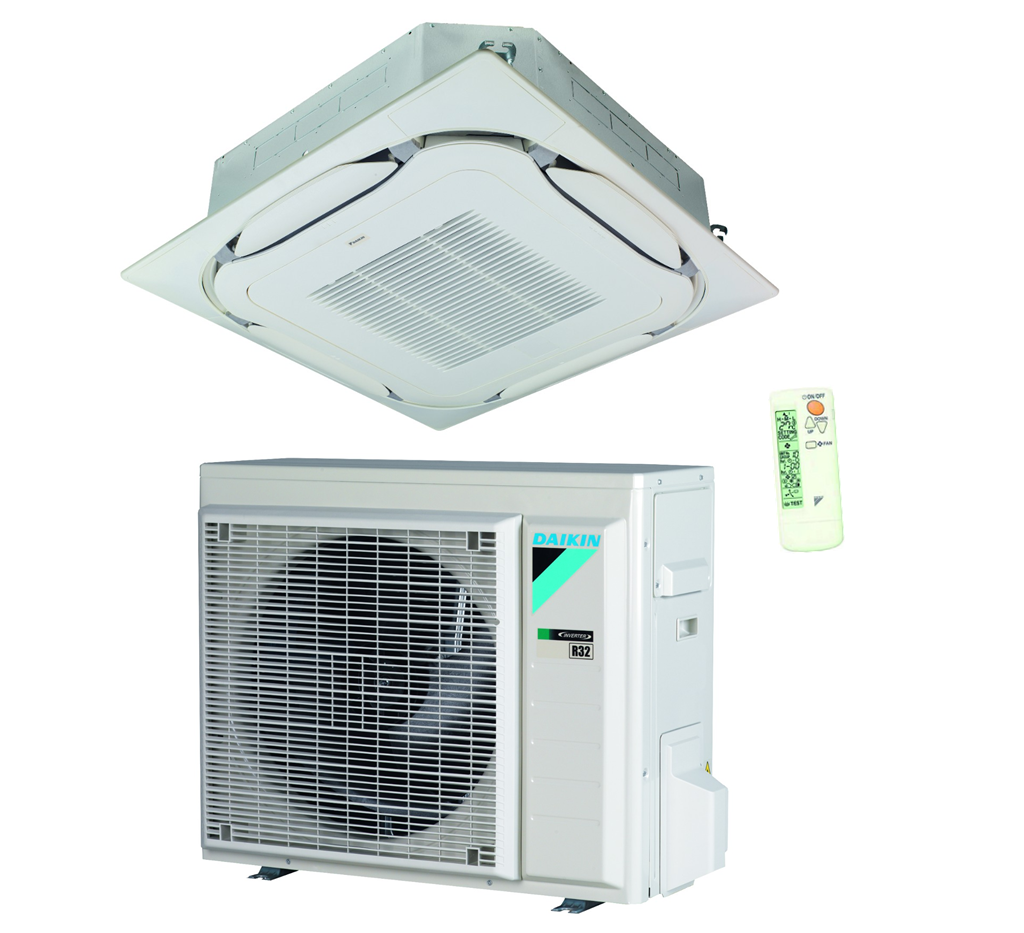

xSplit Roundflow Ceiling Cassette Daikin FCAG60B / RXM60R / BYCQ140E / BRC7FA532F 5.7 kW
Included in delivery:
• one outdoor unit RXM60R
• one indoor unit FCAG60B including standard decorative panel BYCQ140E white (RAL9010 with grey slats)
• an infrared remote control BRC7FA532F
Features:
• Market-leading model with unique 360° air distribution and unsurpassed features and options
• Lowest installation height on the market
• 5 selectable fan speeds ensure maximum comfort
• Larger flaps and unique sweep pattern ensure even air
distribution
• Standard condensate pump increases flexibility and installation speed
• R32 refrigerant
• The outdoor units are equipped with a swing compressor, which ensures lower noise and higher energy efficiency.
• Daikin outdoor units are robust and can be easily mounted on a roof or terrace, or simply placed against an outside wall.
• Heat exchanger fins of the outdoor unit with corrosion protection
Specifications:
| Cooling capacity (Nom.) : | 5.70 kW |
| Heating capacity (Nom) : | 7.00 kW |
| Annual energy consumption cooling/heating: | 312/1569 kWh/a |
| Energy efficiency class cooling/heating: | A++/A+ |
| SEER/SCOP/A: | 6.40/4.20 |
| Sound pressure level indoor unit cooling & heating (N/H): | 28.0/33.0 dB(A) |
| Sound pressure level outdoor unit cooling/heating (Nom.): | 48/49 dB(A) |
| Indoor unit dimensions (HxWxD): | 204x840x840 mm (19 kg) |
| Dimensions of indoor unit panel (HxWxD): | 65x950x950 mm (5.5 kg) |
| Outdoor unit dimensions (HxWxD): | 734x870x373 mm (50 kg) |
| Power supply: | 1 phase, 220-240 V, 50 Hz |
| Cooling/heating operating range (min.-max.): | −10~50/−20~24 °C |
| Air volume flow indoor unit cooling N/M/H: | 9.6/12.2/14.9 m3/min |
| Air volume flow indoor unit heating N/M/H: | 9.6/12.2/14.9 m3/min |
| Refrigerant type: | R32, GWP=675 |
| Refrigerant pre-charge: | pre-filled up to 10 m |
| Pipe connections liquid + gas: | 6.35mm (1/4") + 12.7mm (1/2") |
| Total cable length: | 30 m |
| Max. height difference: | 20 m |
Before purchasing, please contact us to confirm availability and delivery time!
*Important NOTE
Dear customer, you should bear in mind that with the purchase the buyer / user confirms compliance with “Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and compliance with Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person purchasing the split air conditioner / the user confirms that it will be professionally installed by certified professionals.
https://www.gesetze-im-internet.de/chemklimaschutzv/__9.html
