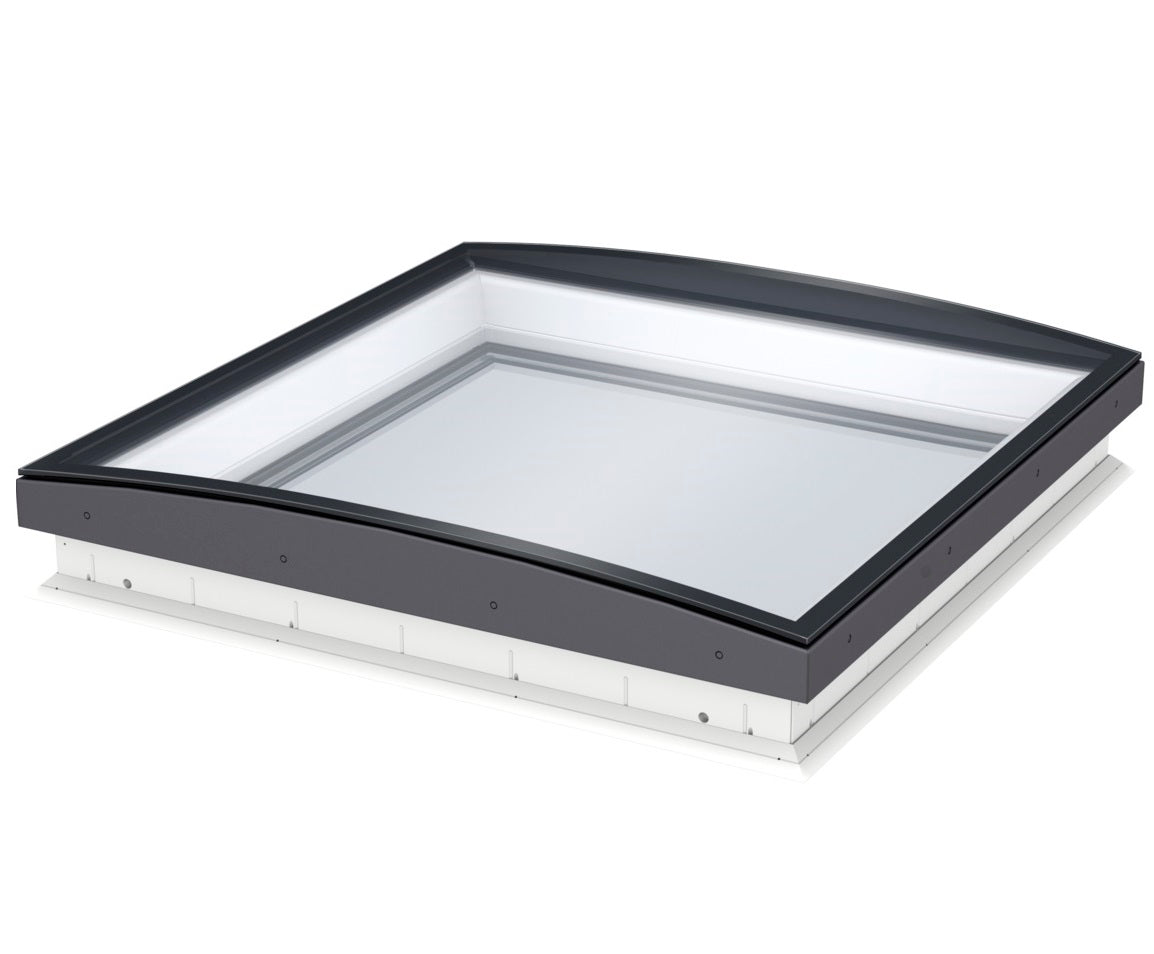

VELUX CFU Fixed Curved Glass Rooflight Package with Double Glazed Base (New Generation)

Included in VELUX Fixed Curved Glass Package:

The CFU New Generation Fixed Curved Glass Rooflight is sold as a complete package including:

• Base Unit: CFU 0020Q (Fixed flat roof window base with double glazed insulating glass, featuring laminated inner pane for safety)
• Top cover: ISU 1093 (Curved Glass top cover)
• Fixings: All necessary fixings for installation

Description:

The New Generation VELUX curved glass rooflight is a revolution in window design. The unique curved-shaped glass top allows rainwater to easily drain off the surface, even on 0° roof pitches. Internally, the slim frame and invisible sash provide maximum daylight and a beautiful design from inside the home, even with a blind installed.

The curved glass top unit combines top technical performance with an updated, slimmer curved design, which is unique in the market. The patented curved-shaped glass top drains off rainwater easily even at 0° roof pitch, and the glass-to-edge design gives a clear view to the sky. The outer glass pane is toughened and weather-resistant for reliable protection against the elements and extra peace of mind.

The curved glass is practically maintenance free. The shape provides natural drainage of rainwater so no need to regularly clean the surface. Toughened, scratch-free glass makes it virtually impervious to damage from the elements.

Key Features:

• Innovative, state-of-the-art design, featuring a Curve-shaped edge-to-edge glass, which allows raindrops to easily run off the glass surface
• Excellent sound reduction and Insulating PU frame
• Suitable for roof pitches from 0-15 degrees
• 3-layer glass construction with Double glazed base and curved glass cover ensures optimal energy performance

Downloads & Data Sheets:

  VELUX CFU Double Glazed Base Data Sheet

  VELUX ISU 1093 Curved Glass Data Sheet

  VELUX CFU Installation Guide

  VELUX 10 Year Guarantee

New Generation Product Video:
