Blustream HEX100CS-RX HDBaseT CSC Receiver - 100m (HEX100CS-RX)

Blustream HEX100CS-RX HDBaseT CSC Receiver - 100m (HEX100CS-RX)

The Blustream HEX100CS-RX is an HDMI 2.0 HDBaseT™ receiver designed for distribution of video and audio over a single CAT cable. It extends HDMI, bi-directional IR and RS-232, and bi-directional PoC up to 100m (4K up to 70m) and provides simultaneous analogue stereo and digital coax audio breakout.

Extended 4K HDMI 2.0 distribution

Engineered with Advanced Colour Space Conversion (CSC), this HDBaseT receiver supports the full HDMI 2.0 18Gbps specification, including HDR, with 4K 60Hz 4:4:4 performance where specified.

• CSC supports HDMI 2.0 18Gbps, including HDR.
• Supports 4K 60Hz 4:4:4 UHD video up to 70m.
• Extends HDMI 1080p up to 100m.
• Supports industry standard video resolutions, including VGA-WUXGA and 480i-4K.

Single-cable video, audio, and control

Built on advanced HDBaseT™ technology, the HEX100CS-RX carries video, audio, and control over one CAT run with pass-through for two-way control and power.

• Distribution of video and audio over a single CAT cable.
• Bi-directional IR and RS-232 pass-through.
• Bi-directional PoC.

Audio breakout and format support

The receiver de-embeds HDMI audio for system flexibility and supports multichannel formats in line with HDMI specifications.

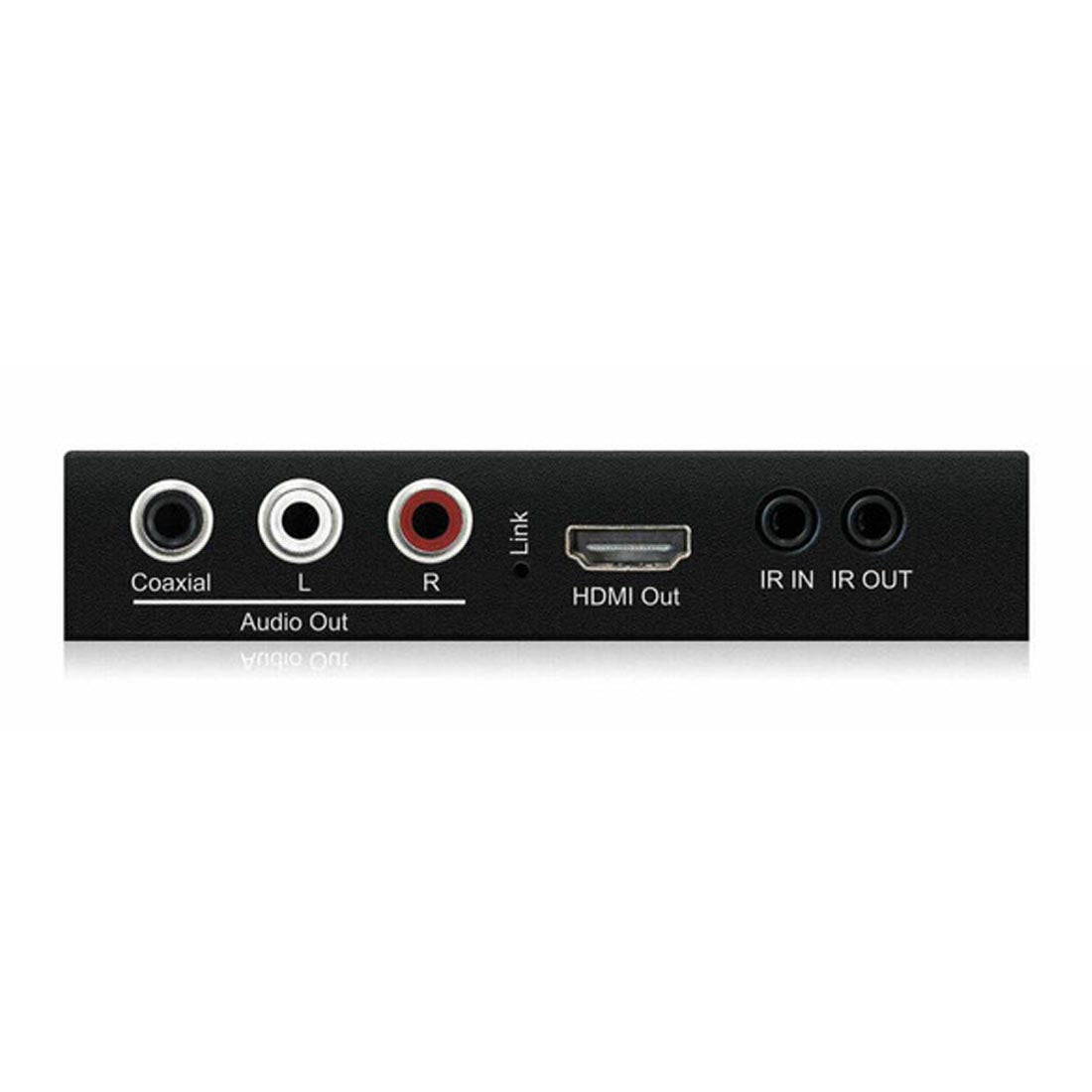

• HDMI audio breakout to analogue L/R and coaxial digital outputs concurrently.
• Bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications.

Signal integrity and compatibility

Integrated tools enhance interoperability and help address common signal issues while maintaining content protection compliance.

• HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues.
• Advanced EDID management.
• HDCP 2.2 compliant.

Installation options

Hardware is provided to support mounting requirements.

• Mounting kit included.

Frequently Asked Questions

• What video formats and distances does the HEX100CS-RX support?

  It supports 4K 60Hz 4:4:4 up to 70m and extends HDMI 1080p up to 100m. It also supports industry standard video resolutions including VGA-WUXGA and 480i-4K.

• Does it pass control signals?

  Yes. It supports bi-directional IR and bi-directional RS-232 pass-through.

• How is audio handled?

  It provides HDMI audio breakout to analogue left/right and coaxial digital outputs concurrently, and supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications.

• Is the HEX100CS-RX HDCP compliant?

  Yes. It is HDCP 2.2 compliant.

• What features improve compatibility?

  HDMI re-clocking helps solve HDMI HDCP, compatibility and handshaking issues, and advanced EDID management is supported.

• Is a power supply included?

  The unit uses a 12V/2A DC screw-type power connector; the power supply is not supplied.

• Does it include mounting hardware?

  Yes. A mounting kit is included.

Add to Cart to integrate the HEX100CS-RX HDBaseT™ CSC Receiver into your system.
